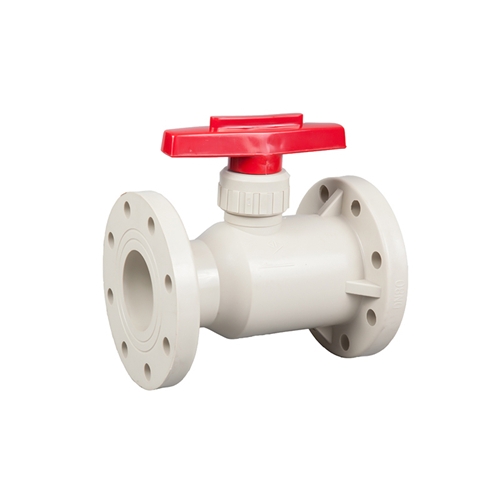

BALL VALVE(FLANGED) PPH

BALL VALVE(FLANGED) PPH

Categories: BALL VALVE, INDUSTRIAL VALVES, PRODUCT Tag: BALL VALVE

Description

Description

Ball valve material app temperature bound

Material	Medium temperature	Material	Medium temperature
FRPP	-20 -+90	PVDF	-40C℃ ~ + 120℃
UPVC	-40 一+60	CPVC	-40℃ ~ +95℃

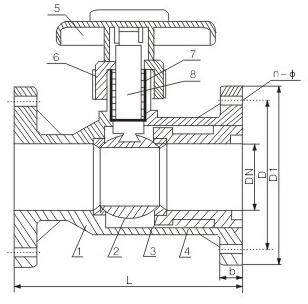

Ball valve part material list

NO.	Name	Material	NO.	Name	Material
1	Body	FRPP.PVDF.UPVC.GPVC	5	Hand wheel	ABS
2	B all	FRPP.PVDF_UPVC.CPVC	6	Retaining Nut	FRPP.PVDF.UPVG.CPVC
3	Seal ring	PTFE,F4	7	Seal	PTFE，F4
4	Inner Plug	FRPP.PVDF_UPVC.CPVC	8	Stem	FRPP.PVDF.UPVG.CPVC

HG、JIS、DIN、ANSI、(HG20592-94) Specs dimension list

DN	D1	D				L	b	n				*				Nominal pressure
DN	D1	HG	JIS	DIN	ANSI	L	b	HG	JIS	DIN	ANSI	HG	JIS	DIN	ANSI	PVDF	FRPP
15	95	65	70	65	60	100	14	4	4	4	4	14	15	14	16	1.2	1
20	105	75	75	75	70	120	16	4	4	4	4	14	15	14	16	1.2	1
25	115	85	90	85	80	140	16	4	4	4	4	14	19	14	16	1.2	1
32	135	100				160	16	4				18				1.2	1
40	145	110	105	110	98	165	16	4	4	4	4	18	19	18	16	1.2	1
50	160	125	120	125	120	180	18	4	4	4	4	18	19	18	19	1.2	1
65	180	145	140	145	140	220	22	4	4	4	4	18	19	18	14	1.2	1
※80	195	160	150	160	152	250	25	4	8	8	4	18	19	18	14	1.2	1
100	215	180	175	180	190	280	25	8	8	8	8	18	19	18	19	1.2	1
125	245	210	210	210	216	320	30	8	8	8	8	18	23	18	22	1	0.8
150	280	240	240	240	240	360	30	8	8	8	8	23	23	23	22	1	0.8
200	335	295	295	295	298	400	35	8	12	8	8	23	23	23	22	0.8	0.8
250 395	395	350	355	350	362	500	38	12	12	12	12	23	23	23	22	0.8	0.5
300 455	455	400	400	400	432	600	40	12	16	12	12	23	25	23	25	0.6	0.5

1. 8 holes is available for the DN80 of HG20592-97 2. Where DN200, DN250 and DN300 is worm driven (p14)
