Description

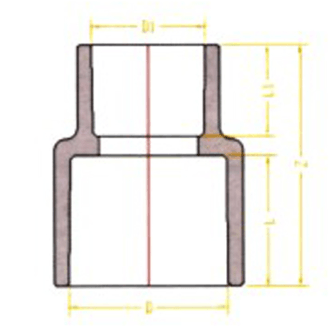

| Size(mm) | 3/4 ×1 /2″ | 1″×3/4” | 1-×1/2″ | 1-1/4″×1″ | 1-1/4″×3/4″ |
| D(mm) | 22.2 | 28.6 | 28.6 | 34.9 | 34.9 |
| D1(mm) | 15.9 | 22.2 | 15.9 | 28.6 | 22.2 |
| L(mm) | 17.9 | 23.0 | 23.0 | 28.1 | 28.1 |
| L1(mm) | 12.8 | 17.9 | 12.8 | 23.0 | 17.9 |
| Z(mm) | 33.8 | 44.0 | 36.0 | 54.2 | 49.0 |
| Size(mm) | 1-1/2″ ×1-1/4″ | 1-1/2″ ×1″ | 2″×1-1/2″ | 2″×1-1/4″ |
| D(mm) | 41.3 | 41.3 | 54.0 | 54.0 |
| D1(mm) | 34.9 | 28.6 | 41.3 | 34.9 |
| L(mm) | 33.2 | 33.2 | 43.3 | 43.3 |
| L1(mm) | 28.1 | 23.0 | 33.2 | 28.1 |
| Z(mm) | 64.5 | 59.5 | 79.5 | 74.5 |
