Description

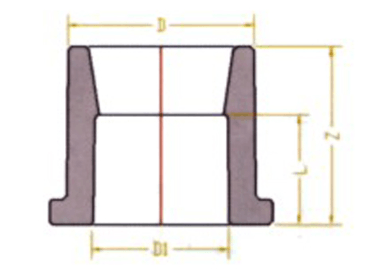

| Size(mm) | 3/4″×1/2″ | 1×1/2″ | 1″×3/4″ | 1-1/4″×1/2″ | 1-1/4″×3/4″ | 1-1/4″×1″ | 1-1/2″×1/2″ | 1-1/2″×3/4″ |
| D(mm) | 22.2 | 28.6 | 28.6 | 34.9 | 34.9 | 34.9 | 41.3 | 41.3 |
| D1(mm) | 15.9 | 15.9 | 22.2 | 15.9 | 22.2 | 28.6 | 15.9 | 222 |
| L(mm) | 17.9 | 23.0 | 23.0 | 17.9 | 23.0 | 28.1 | 17.9 | 23.0 |
| Z(mm) | 21.0 | 262 | 26.2 | 322 | 32.2 | 32.2 | 37.7 | 37.7 |
| Size(mm) | 1-1/2″×1″ | 1-1/2″×1″-1/4″ | 2″×1/2″ | 2″x3/4″ | 2″×1″ | 2×1-1/4″ | 2″×1-1/2″ |
| D(mm) | 41.3 | 41.3 | 54.0 | 54.0 | 54.0 | 54.0 | 54.0 |
| D1(mm) | 28.6 | 34.9 | 15.9 | 22.2 | 28.6 | 34.9 | 41.3 |
| L(mm) | 28.1 | 33.2 | 17.9 | 23.0 | 28.1 | 33.2 | 43.3 |
| Z(mm) | 37.7 | 37.7 | 48.0 | 48.0 | 48.0 | 48.0 | 48.0 |
