Description

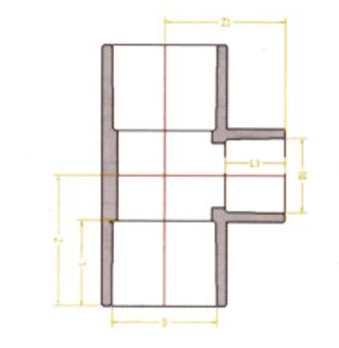

| Sizetmm) | 3/4″x1/2″ | 1″x3/4″ | 1″x1/2″ | 1-1/4″×1″ | 1-1/4″x3/4″ |
| D(mm) | 222 | 28.6 | 28.6 | 34.9 | 34.9 |
| D1(mm) | 15.9 | 22.2 | 15.9 | 28.6 | 22.2 |
| L(mm) | 17.9 | 23.0 | 23.0 | 28.1 | 28.1 |
| L1(mm) | 12.8 | 17.9 | 12.8 | 23.0 | 17.9 |
| Z(mm) | 28.0 | 36.2 | 33.0 | 44.5 | 40.7 |
| Z1(mm) | 26.0 | 34.5 | 39.2 | 42.5 | 37.9 |
| Sizetmm) | 1-1/2″x1-1/4″ | 1-1/2″x1″ | 2″x1-1/2″ | 2″x1-1/4″ |
| D(mm) | 41.3 | 41.3 | 54.0 | 54.0 |
| D1(mm) | 34.9 | 28.6 | 41.3 | 34.9 |
| L(mm) | 33.2 | 33.2 | 43.3 | 43.3 |
| L1(mm) | 28.1 | 23.0 | 33.2 | 28.1 |
| Z(mm) | 52.6 | 49.5 | 66.3 | 63.2 |
| Z1(mm) | 50.5 | 45.5 | 61.8 | 56.7 |
