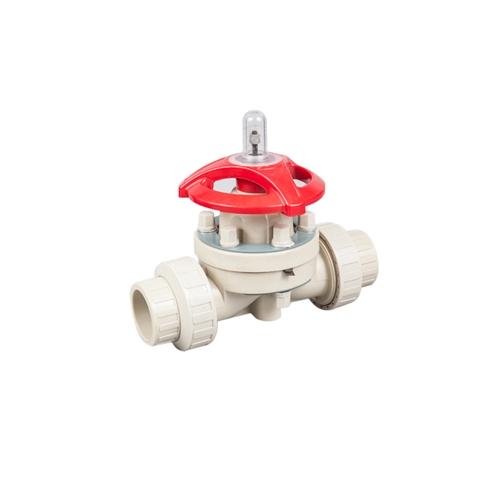

DIAPHRAGM VALVE(UNION)PPH

DIAPHRAGM VALVE(UNION)PPH

Categories: , , Tag:

Description

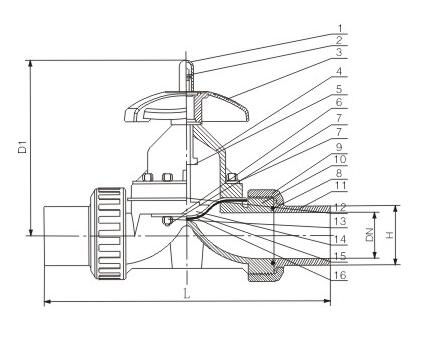

DIAPHRAGM VALVE(UNION)PPH SIZE

Part material list

ItemPartsPcsMaterialsItemPartsPcsMaterials
(1)Idm1PPG+NYLON/BRASS(9)Indicator bottle1PC
(2)Diaphragm1EPDN,VITON(10)0 ring2EPDM,VITON
(3)Body1UPVC,PP,CPVC,PPG,PVDF(11)Press plate1PPG+NYLON
(4)Dentin1PPG+NYLON/BRASS(12)Indicator1PE
(5)From the outer cover2UPVC,PP,CPVC,PPG,PVDF(13)Screw4SUS304
(6)Hand handle1PP(14)Nut4SUS304
(7)Joint2UPVC,PP,CPVC,PPG,PVDF(19)Huake4SUS304
(8)Upper cover1PPG





JIS、ANSI、DIN Specs dimension list

Stcndards

/Nom.Size

ANSI(Unit：inch)ANSI(Unit:inch)DIN(Unit:mm)
dPBLHAFKkgf/cm²dPBLHAFKkgf/cm²dPBLHAFKkgf/cm²
tgykxjmpTeflontgykxjmpTeflontgykxjmpTeflon
15 1/2″22PT1/222.2541641048125M67100.840NPT1/20.8752.1266.4574.0943.1890.984M610414820R1/216.0541641048125M6710
20 3/4″26PT3/425.4541641048125M67101.050TPT3/21.0002.1266.4574.0943.1890.984M610114825R3/418.5541641048125M6710
25-1″32PT128.6631801169125M67101.315NPT11.1252.4807.0874.5873.5820.984M610414832R122.0631801169125M6710
32-1 1/4″38PT1 1/431.88523514211745M67101.660NPT1 1/41.2503.3469.2525.5914.6061.772M610414840R1 1/426.08523514211745M8710
40-1 1/4″48PT1 1/234.98523514511745M87101.900NPT1 1/21.3753.3469.2525.5914.6061.772M610414850R1 1/231.08523514211745M8710
50-2″602PT223.199266176150455M87102.375NPT21.5003.89810.4726.9295.9061.772M610414863R237.59926617615045M8710
