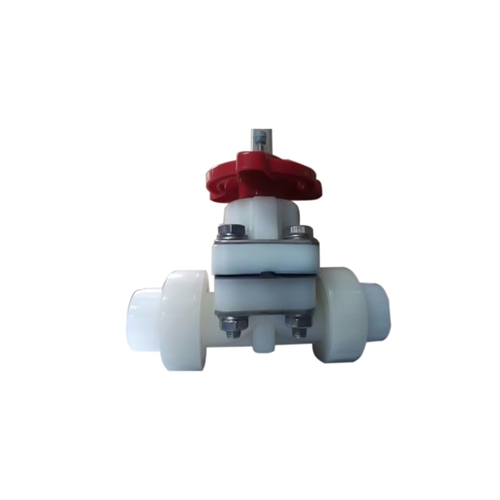

DIAPHRAGM VALVE(UNION)PVDF

DIAPHRAGM VALVE(UNION)PVDF

Categories: DIAPHRAGM VALVE, INDUSTRIAL VALVES, PRODUCT Tag: DIAPHRAGM VALVE

Description

Description

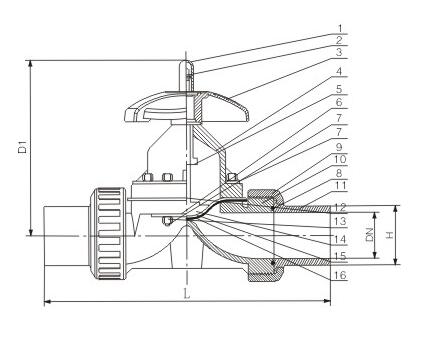

Part material list

Item	Parts	Pcs	Materials	Item	Parts	Pcs	Materials
(1)	Idm	1	PPG+NYLON/BRASS	(9)	Indicator bottle	1	PC
(2)	Diaphragm	1	EPDN,VITON	(10)	0 ring	2	EPDM,VITON
(3)	Body	1	UPVC,PP,CPVC,PPG,PVDF	(11)	Press plate	1	PPG+NYLON
(4)	Dentin	1	PPG+NYLON/BRASS	(12)	Indicator	1	PE
(5)	From the outer cover	2	UPVC,PP,CPVC,PPG,PVDF	(13)	Screw	4	SUS304
(6)	Hand handle	1	PP	(14)	Nut	4	SUS304
(7)	Joint	2	UPVC,PP,CPVC,PPG,PVDF	(19)	Huake	4	SUS304
(8)	Upper cover	1	PPG

JIS、ANSI、DIN Specs dimension list

Stcndards /Nom.Size	ANSI(Unit：inch)											ANSI(Unit:inch)											DIN(Unit:mm)
	d		P	B	L	H	A	F	K	kgf/cm²		d		P	B	L	H	A	F	K	kgf/cm²		d		P	B	L	H	A	F	K	kgf/cm²
	tg	yk	P	B	L	H	A	F	K	xjmp	Teflon	tg	yk	P	B	L	H	A	F	K	xjmp	Teflon	tg	yk	P	B	L	H	A	F	K	xjmp	Teflon
15 1/2″	22	PT1/2	22.2	54	164	104	81	25	M6	7	10	0.840	NPT1/2	0.875	2.126	6.457	4.094	3.189	0.984	M6	104	148	20	R1/2	16.0	54	164	104	81	25	M6	7	10
20 3/4″	26	PT3/4	25.4	54	164	104	81	25	M6	7	10	1.050	TPT3/2	1.000	2.126	6.457	4.094	3.189	0.984	M6	101	148	25	R3/4	18.5	54	164	104	81	25	M6	7	10
25-1″	32	PT1	28.6	63	180	116	91	25	M6	7	10	1.315	NPT1	1.125	2.480	7.087	4.587	3.582	0.984	M6	104	148	32	R1	22.0	63	180	116	91	25	M6	7	10
32-1 1/4″	38	PT1 1/4	31.8	85	235	142	117	45	M6	7	10	1.660	NPT1 1/4	1.250	3.346	9.252	5.591	4.606	1.772	M6	104	148	40	R1 1/4	26.0	85	235	142	117	45	M8	7	10
40-1 1/4″	48	PT1 1/2	34.9	85	235	145	117	45	M8	7	10	1.900	NPT1 1/2	1.375	3.346	9.252	5.591	4.606	1.772	M6	104	148	50	R1 1/2	31.0	85	235	142	117	45	M8	7	10
50-2″	602	PT2	23.1	99	266	176	150	455	M8	7	10	2.375	NPT2	1.500	3.898	10.472	6.929	5.906	1.772	M6	104	148	63	R2	37.5	99	266	176	150	45	M8	7	10
