Description
1. This product meets the requirements of advanced standards at home and abroad, with reliable sealing, excellent performance and beautiful appearance.
2. The sealing surface of the gate and the seat is made of rubber, which is resistant to temperature, corrosion and long service life.
3. The valve stem is tempered and surface nitrided for good corrosion and scratch resistance.
4. The wedge-shaped elastic shutter structure is loose.
5. Various pipe flange standards and flange sealing surface types can be used to meet various engineering needs and user requirements.

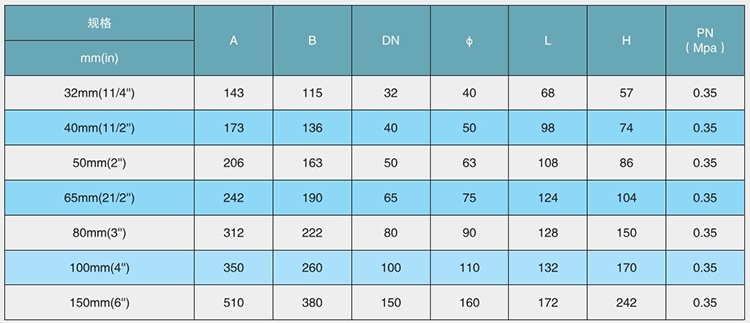

6. Specifications are DN20-DN150 gate valve with pressure 3-4KG, used for sewage, DN80-DN100 gate is stainless steel

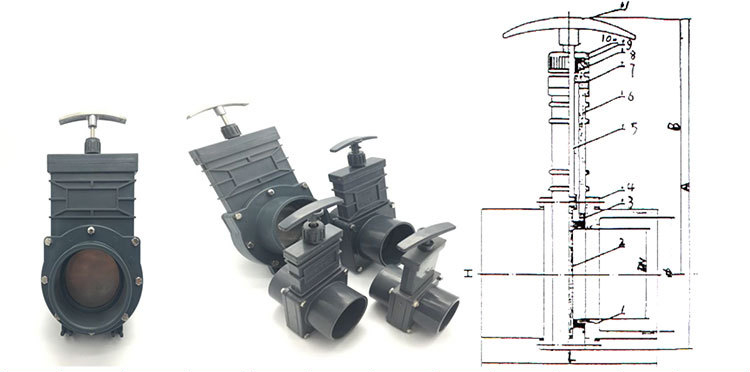

| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| Parts | Socket | Valve Gate | Seat | Bolt | Stem | Body | Cover | O-Ring | Gland | Lock net | Handle |
| Material | UPVC | ABS.1Cr13 | EPDM.NBR | A2 | 1Cr13 | UPVC | upvc | EPDM.NBR | UPVC | UPVC | ABS.ZL106 |
